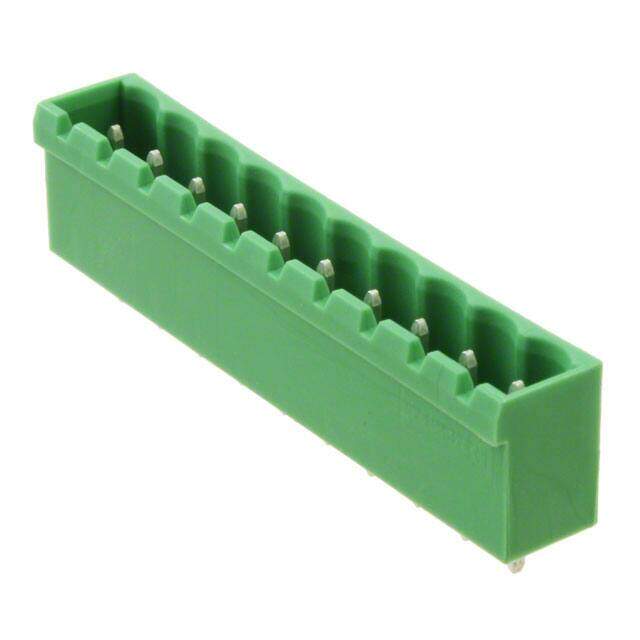

1755503
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 10POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7456
≥1 USD $2.7456
≥10 USD $2.6224
≥100 USD $2.550768
≥500 USD $2.38392
≥1000 USD $2.193206
≥3000 USD $2.152146
Inventory: 2736
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 52mm
Length 52mm
Height 15.9mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 10
Number of Decks 1
Number of Poles 10
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated DC 400V
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2005
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
