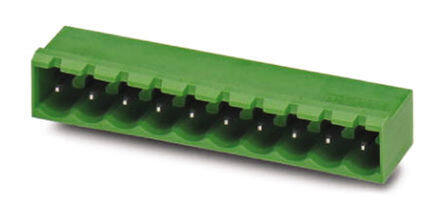

1754876
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $8.43
Unit Price: USD $8.432449
≥1 USD $8.432449
≥10 USD $7.95514
≥100 USD $7.504847
≥500 USD $7.080048
≥1000 USD $6.679285
Inventory: 6351
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 24
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 24
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 24
Dimensions
Height 12.1mm
Length 12mm
Width 120mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
