1754791
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

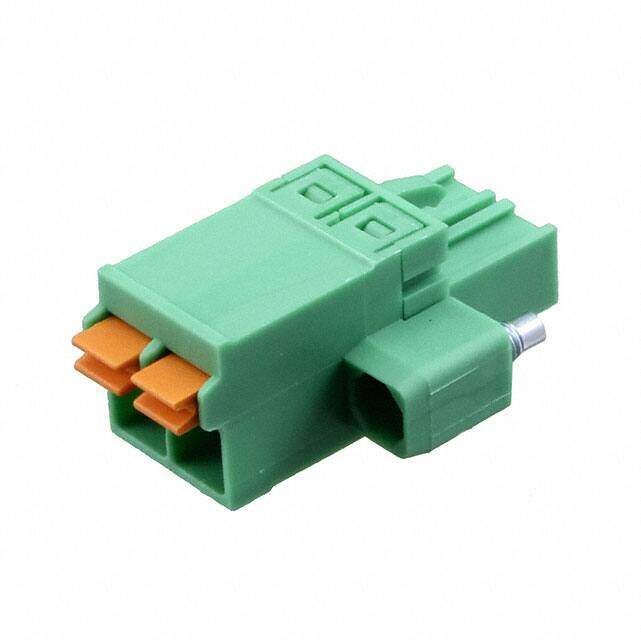

Conn Spring Cage F 2 POS 5.08mm Spring Clamp ST Panel Mount 12A
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.2352
≥1 USD $2.2352
≥10 USD $2.178
≥100 USD $2.03544
≥500 USD $1.87264
≥1000 USD $1.837616
Inventory: 269
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCN
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 320V
Pitch 0.200 5.08mm
Insulation Height 0.429 10.90mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-24 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
