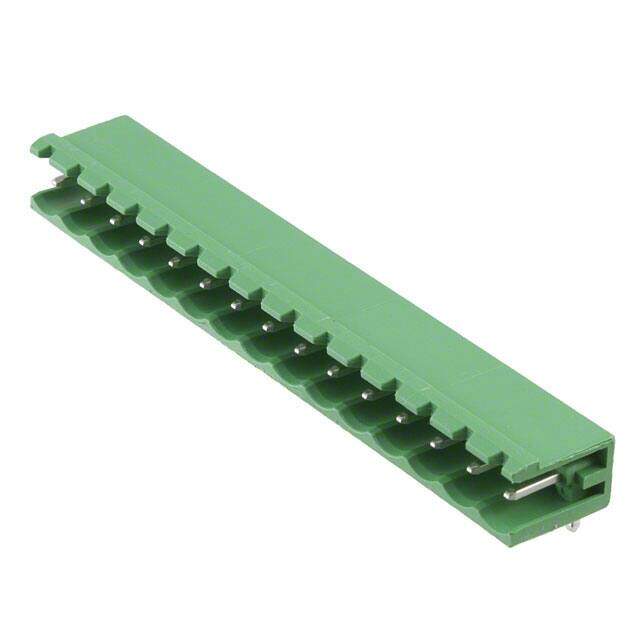

1754711 image
Favorite
1754711 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description MSTB Series; 5mm Pitch 16 Way 1 Row Right Angle PCB Trm Blk; Solder Term; 12A
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $4.004
≥1 USD $4.004
Inventory: 129
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g

Technical

Packaging Bulk
Published 2011
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, UL 94 V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 16
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 16
Fastening Method CONNECTOR

Dimensions

Length 80mm
Width 12mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
