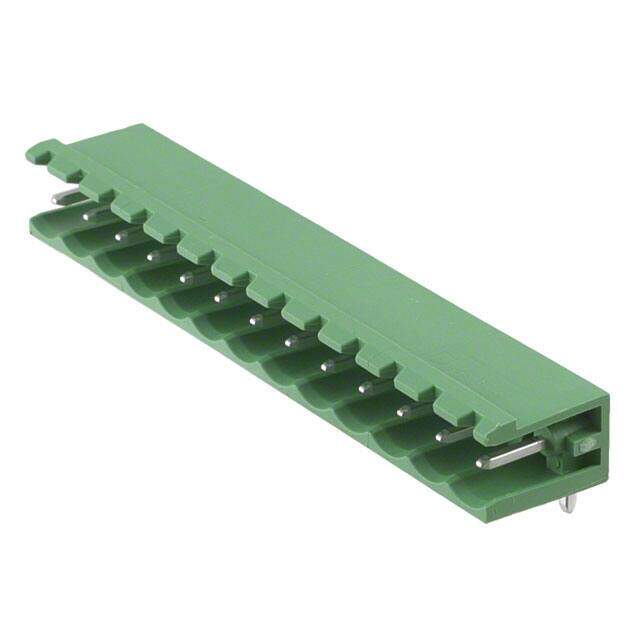

1754656 image
Favorite
1754656 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 13 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.13
Unit Price: USD $4.128494
≥1 USD $4.128494
≥10 USD $3.894809
≥100 USD $3.674342
≥500 USD $3.466362
≥1000 USD $3.27016
Inventory: 1121
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 65mm

Technical

Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Number of Ways 13
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94 V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 13
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTB
Published 2010
Packaging Bulk

Physical

Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 5 Weeks
