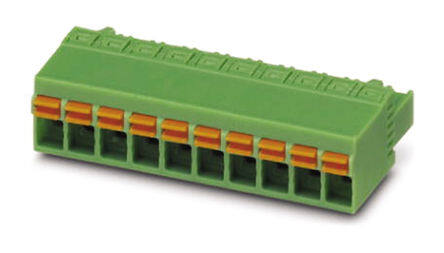

1754597
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $5.35
Unit Price: USD $5.3504
≥1 USD $5.3504
≥10 USD $5.20344
≥100 USD $4.86288
≥500 USD $4.473832
≥1000 USD $4.390109
Inventory: 86
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 5
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.429 10.90mm
Pitch 0.200 5.08mm
Voltage - Rated 320V
Gender Female
Color Green
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKCN
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
