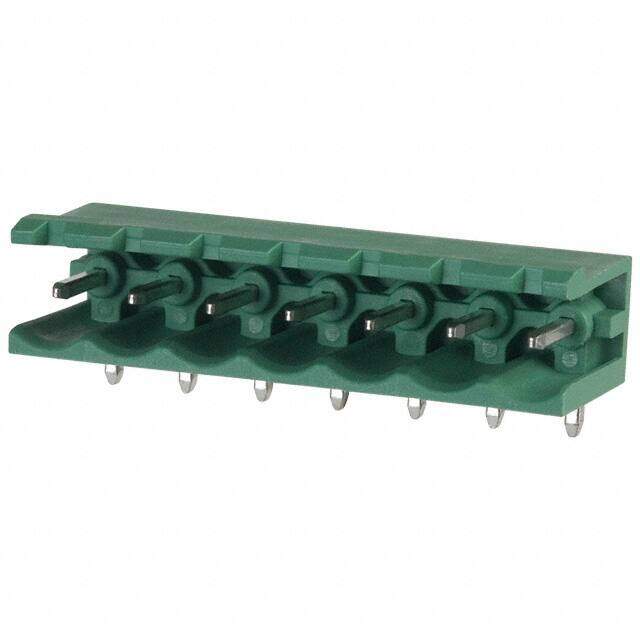

1754533
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 7POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.9272
≥1 USD $1.9272
≥10 USD $1.84712
≥100 USD $1.796608
≥500 USD $1.67904
≥1000 USD $1.544717
≥3000 USD $1.5158
Inventory: 637
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 35mm
Length 35mm
Height 12.1mm
Technical
Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Number of Ways 7
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 7
Current 15A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated DC 320V
HTS Code 8536.69.40.40
Additional Feature PA, UL 94 V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 7
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTB
Published 2010
Packaging Bulk
Physical
Weight 2.100133kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin
Supply Chain
Factory Lead Time 7 Weeks
