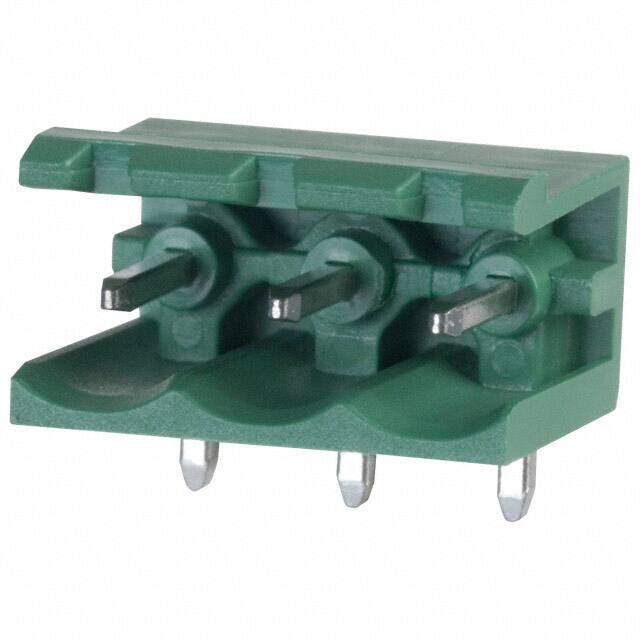

1754452
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 3POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.82016
≥100 USD $0.78408
≥500 USD $0.762696
≥1000 USD $0.7128
≥3000 USD $0.655776
Inventory: 2208
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.471g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated DC 320V
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 3
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 12.1mm
Length 15mm
Width 15mm
Thickness 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
