1753754
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

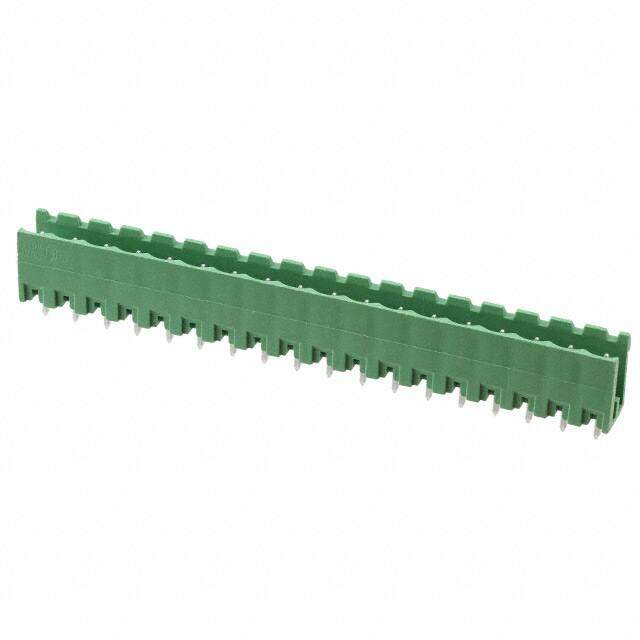

Terminal block; PCB; Header; Male Pins; Shrouded (2 Side); 18 pos; 12A; 400V; Solder
PDF
/
Buying Options
Total Price: USD $5.98
Unit Price: USD $5.9752
≥1 USD $5.9752
≥10 USD $5.80976
≥100 USD $5.4296
≥500 USD $4.995232
≥1000 USD $4.615142
≥3000 USD $4.411581
Inventory: 71
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 18
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 18
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2010
Packaging Bulk
Physical
Weight 907.18474g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
