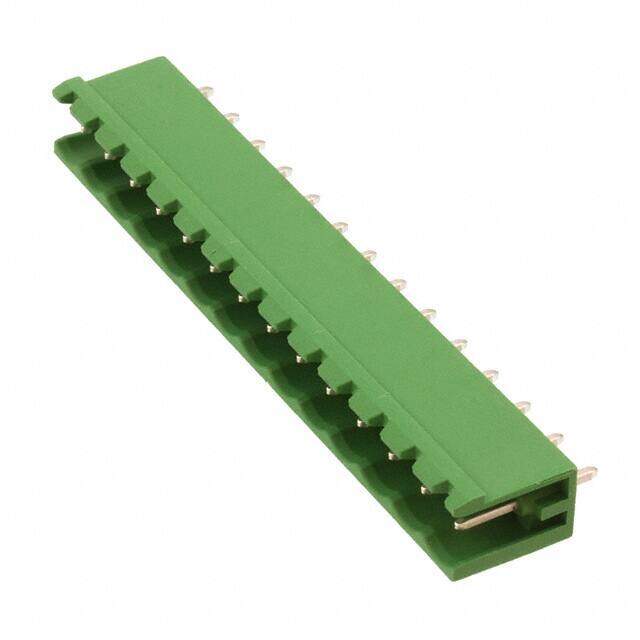

1753673
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 14POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6256
≥1 USD $3.6256
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 70mm
Length 70mm
Height 15.9mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 14
Voltage - IEC 400V
Number of Decks 1
Number of Poles 14
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2011
Packaging Bulk
Physical
Weight 1.200205kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
