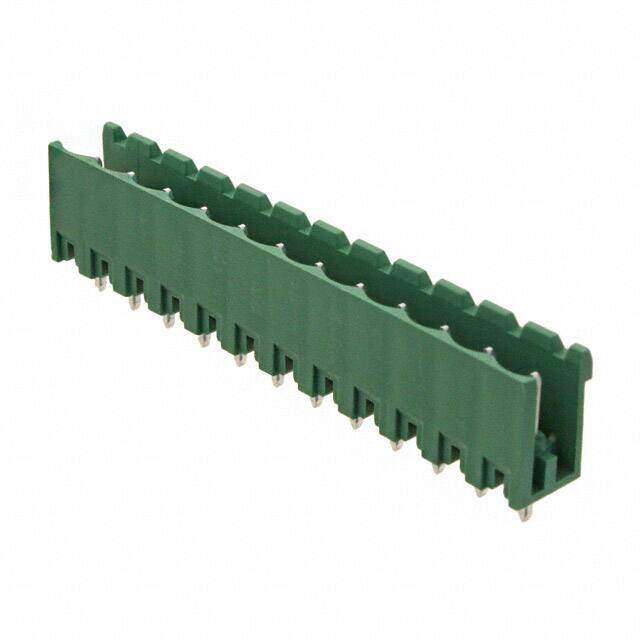

1753631 image
Favorite
1753631 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON MSTBV RoHS Compliant 2010 Straight Terminal Block Header, Male Pins, Shrouded (2 Side) UL94V-0 Vertical 12A 300V
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.684
≥1 USD $2.684
Inventory: 132
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 22.8mm
Length 60mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 12
Number of Decks 1
Number of Poles 12
Current 12A
Number of Levels 1
Max Current Rating 12A
ELV Compliant
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated DC 400V
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2010
Packaging Bulk

Physical

Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
