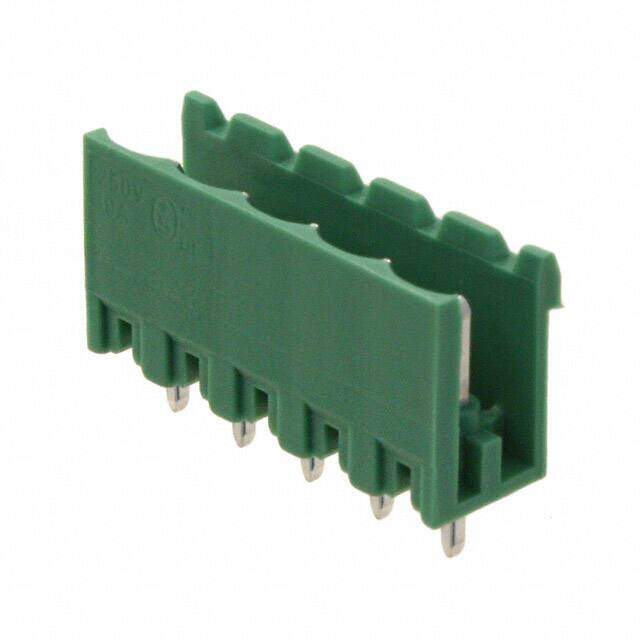

1753495 image
Favorite
1753495 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 5POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.452
≥1 USD $1.452
≥10 USD $1.39392
≥100 USD $1.333024
≥500 USD $1.296592
≥1000 USD $1.21176
≥3000 USD $1.114819
Inventory: 105
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 25mm
Length 25mm
Height 15.9mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 5
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 5
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.197 5.00mm
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2005
Packaging Bulk

Physical

Weight 2.209987g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin

Supply Chain

Factory Lead Time 4 Weeks
