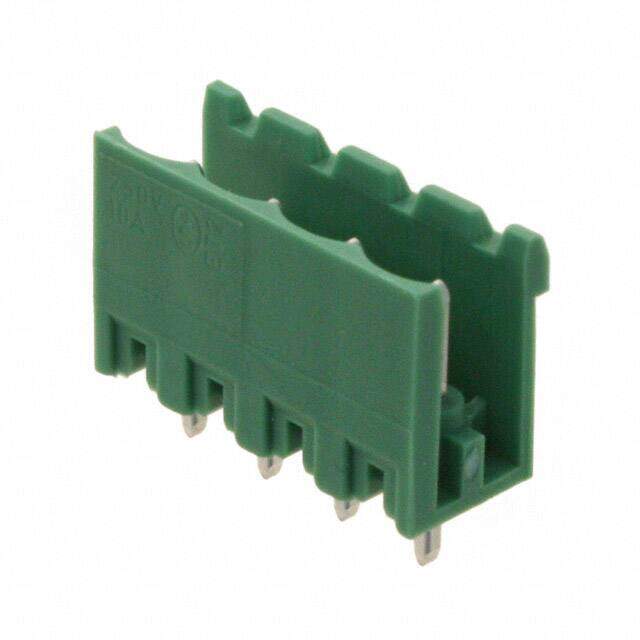

1753479 image
Favorite
1753479 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
Inventory: 494
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.886009g

Technical

Packaging Bulk
Published 2010
Series COMBICON MSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 4
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 4
Safety Approval UL
Header Orientation Vertical

Dimensions

Height 15.9mm
Length 20mm
Width 20mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
