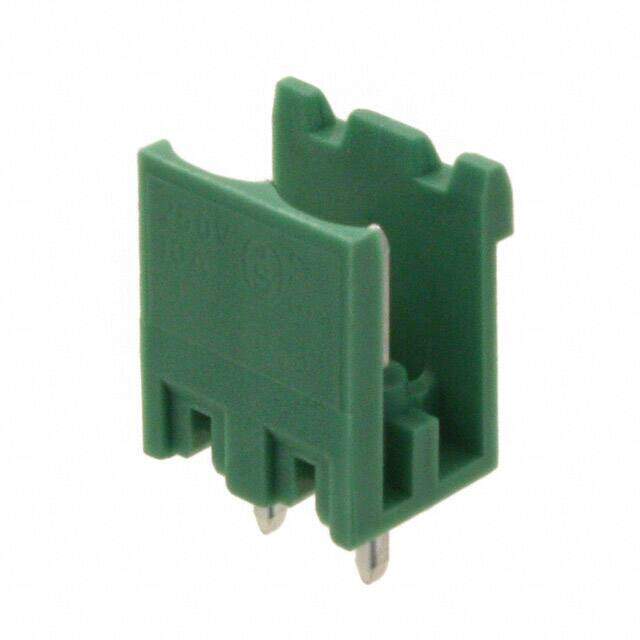

1753437
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
Inventory: 1138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.070988g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 400V
Pitch 0.197 5.00mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 2
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 2
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 10mm
Length 10mm
Width 15.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
