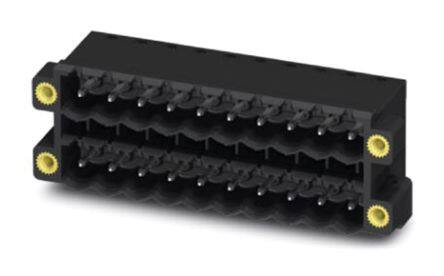

1753381
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON CCDN RoHS Compliant 2011 Mating Flange Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 10A 320V 0.791 20.09mm
PDF
/
Buying Options
Total Price: USD $14.96
Unit Price: USD $14.96
≥1 USD $14.96
≥10 USD $14.5508
≥100 USD $13.59864
≥500 USD $12.510784
≥1000 USD $12.276563
Inventory: 155
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Current - UL 10A
Voltage - UL 300V
Contact Mating Finish Tin
Current 12A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 320V
Termination Style Solder
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.791 20.09mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Black
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON CCDN
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
