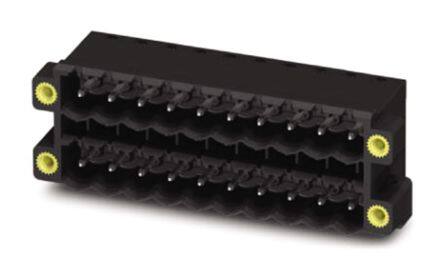

1753310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $10.58
Unit Price: USD $10.584341
≥1 USD $10.584341
≥10 USD $9.98523
≥100 USD $9.420024
≥500 USD $8.886814
≥1000 USD $8.383791
Inventory: 2777
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON CCDN
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.791 20.09mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 2
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
