1753255
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

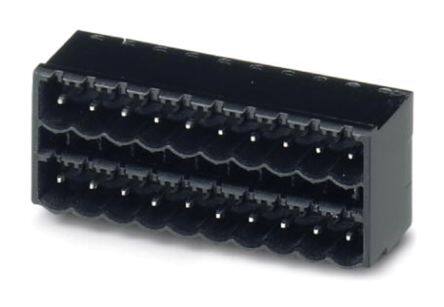

Pluggable Terminal Blocks 14 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 14
Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.791 20.09mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Black
Number of Positions 28
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON CCDN
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
