1753145
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

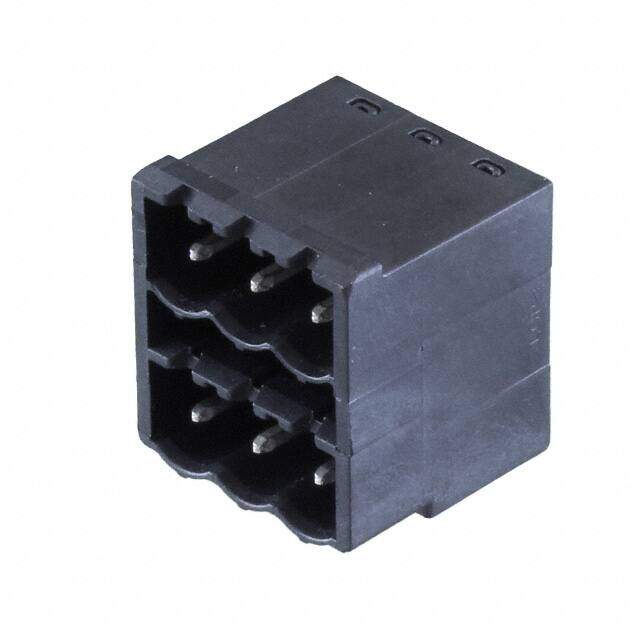

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.35
Unit Price: USD $3.3528
≥1 USD $3.3528
≥10 USD $3.26304
≥100 USD $3.0492
≥500 USD $2.805264
≥1000 USD $2.752746
Inventory: 399
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 3
Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.791 20.09mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Black
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON CCDN
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
