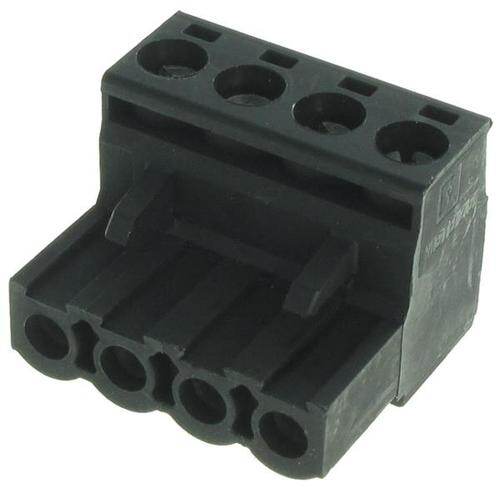

1752292
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $6.73
Unit Price: USD $6.732591
≥1 USD $6.732591
≥10 USD $6.351502
≥100 USD $5.991986
≥500 USD $5.652817
≥1000 USD $5.332839
Inventory: 2591
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Gauge or Range - AWG 12-30 AWG
Contact Mating Finish Gold
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Black
Number of Positions 4
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON MSTB
Published 2011
Packaging Bulk
Physical
Weight 1.999889kg
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 11 Weeks
