1752205
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

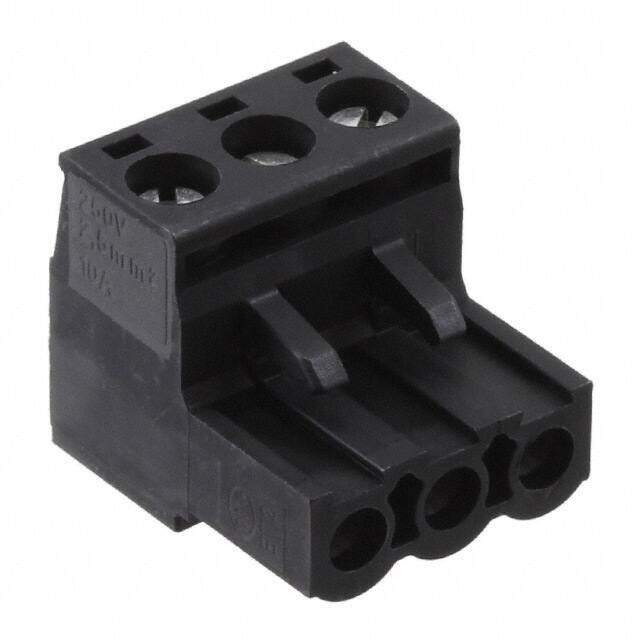

TERM BLOCK PLUG 3POS STR 5MM
PDF
/
Buying Options
Total Price: USD $3.6
Unit Price: USD $3.5992
≥1 USD $3.5992
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Number of Ways 3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 250V
Wire Gauge or Range - AWG 12-30 AWG
Contact Mating Finish Gold
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Number of Levels 1
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Black
Number of Positions 3
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON MSTB
Published 2011
Packaging Bulk
Physical
Weight 1.999889kg
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
