1752030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

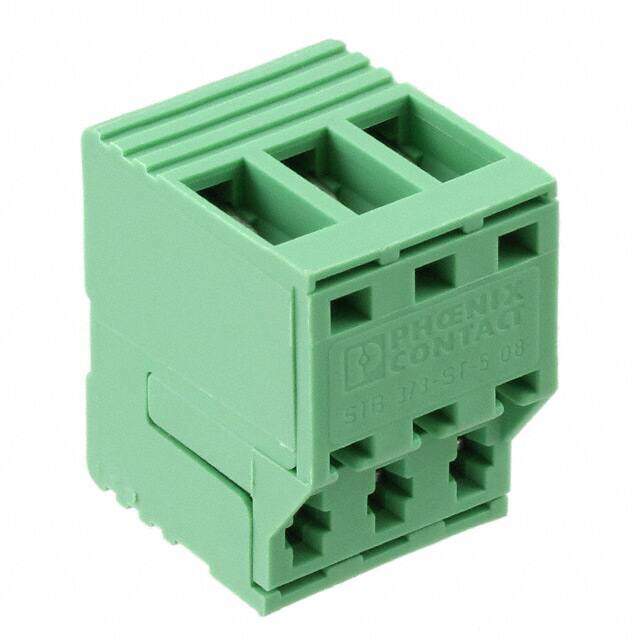

Printed-circuit board connector STB 3/3-ST-5,08 1752030 Phoenix Contact
PDF
/
Inventory: 1149
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Size M3
Current - IEC 16A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-4mm2
Safety Approval CSA; UL
Number of Ways 3
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Max Current Rating 16A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 3
Termination Style Screw
Pitch 0.200 5.08mm
Number of Rows 1
Color Green
Number of Positions 3
Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
Series COMBICON STB
Published 2010
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Plastic
Supply Chain
Factory Lead Time 3 Weeks
