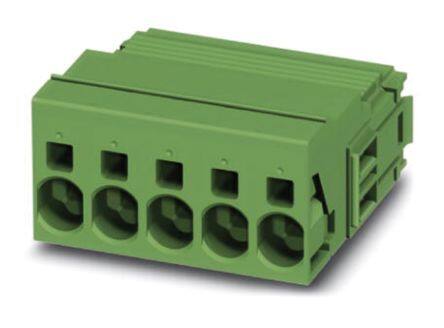

1748901 image
Favorite
1748901 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 6 Pos 7.62mm Invert Plug 18-4AWG Spring
PDF
/
Buying Options
Total Price: USD $13.31
Unit Price: USD $13.309761
≥1 USD $13.309761
≥10 USD $12.556377
≥100 USD $11.845642
≥500 USD $11.175132
≥1000 USD $10.542577
Inventory: 4920
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 6
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Number of Ways 6
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 4 AWG
Current 35A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 41A
Insulation Height 0.780 19.80mm
Pitch 0.300 7.62mm
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON ISPC
Published 2011
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 12 Weeks
