1748655
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

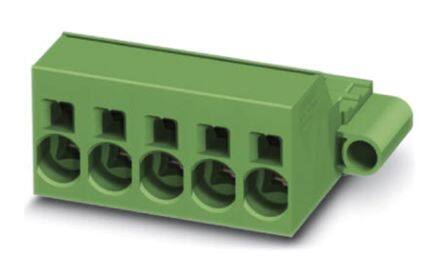

Pluggable Terminal Blocks 5 Pos 10.16mm Invert Plug 18-4AWG Spring
PDF
/
Buying Options
Total Price: USD $23.05
Unit Price: USD $23.0472
≥1 USD $23.0472
≥10 USD $22.41976
≥100 USD $20.952976
≥500 USD $19.276752
≥1000 USD $17.809827
≥3000 USD $16.971909
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 40.999988g
Technical
Packaging Bulk
Published 2011
Series COMBICON ISPC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V0
Pitch 0.400 10.16mm
Insulation Height 0.988 25.10mm
Current Rating 76A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 66A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 4 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 18mm
Current - IEC 76A
Number of Positions Per Level 5
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
