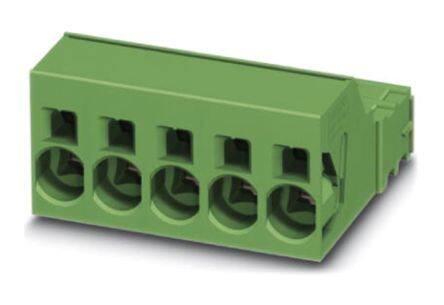

1748600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 10.16mm Invert Plug 18-4AWG Spring
PDF
/
Inventory: 1125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Number of Positions Per Level 8
Current - IEC 76A
Wire Strip Length 18mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Voltage - IEC 1kV
Wire Gauge or Range - AWG 4-20 AWG
Number of Decks 1
Contact Mating Finish Silver
Wire Gauge (Min) 4 AWG
Wire Gauge (Max) 20 AWG
Current 66A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 76A
Insulation Height 0.988 25.10mm
Pitch 0.400 10.16mm
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON ISPC
Published 2011
Packaging Bulk
Physical
Weight 68.999989g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
