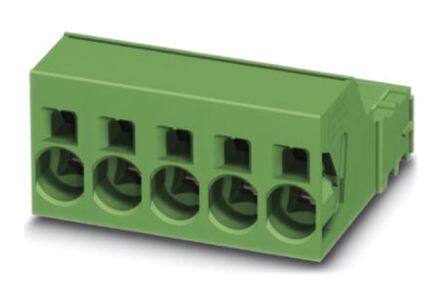

1748545 image
Favorite
1748545 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 10.16mm Invert Plug 18-4AWG Spring
PDF
/
Buying Options
Total Price: USD $7.18
Unit Price: USD $7.18344
≥1 USD $7.18344
Inventory: 161
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 45.1mm
Length 23.36mm
Height 25.1mm

Technical

Fastening Method SPRING LOADED
Number of Positions Per Level 2
Current - IEC 76A
Wire Strip Length 18mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 2
Voltage - IEC 1kV
Wire Gauge or Range - AWG 4-20 AWG
Number of Decks 1
Wire Gauge (Min) 4 AWG
Wire Gauge (Max) 20 AWG
Current 66A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 76A
Insulation Height 0.988 25.10mm
Pitch 0.400 10.16mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Plug
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON ISPC
Published 2011
Packaging Bulk

Physical

Weight 17.462002g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver

Supply Chain

Factory Lead Time 4 Weeks
