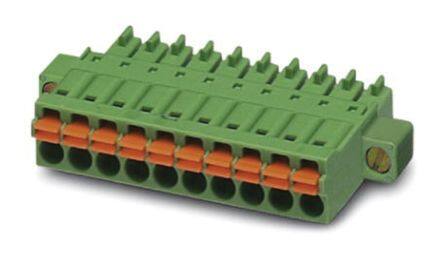

1748493
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 16 Pos 3.81mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $9.8
Unit Price: USD $9.8032
≥1 USD $9.8032
≥10 USD $9.53392
≥100 USD $8.91
≥500 USD $8.1972
≥1000 USD $8.043763
Inventory: 216
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 9.899994g
Technical
Packaging Bulk
Published 2011
Series COMBICON FMC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.307 7.80mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 16
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
