1748451
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

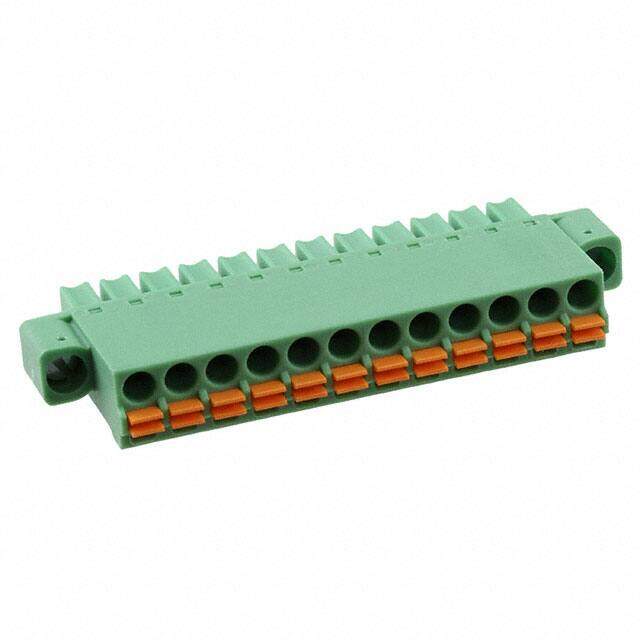

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $7.94
Unit Price: USD $7.9376
≥1 USD $7.9376
≥10 USD $7.72024
≥100 USD $7.21512
≥500 USD $6.637928
≥1000 USD $6.513654
Inventory: 114
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 7.800003g
Technical
Packaging Bulk
Published 2011
Series COMBICON FMC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.307 7.80mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
