RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

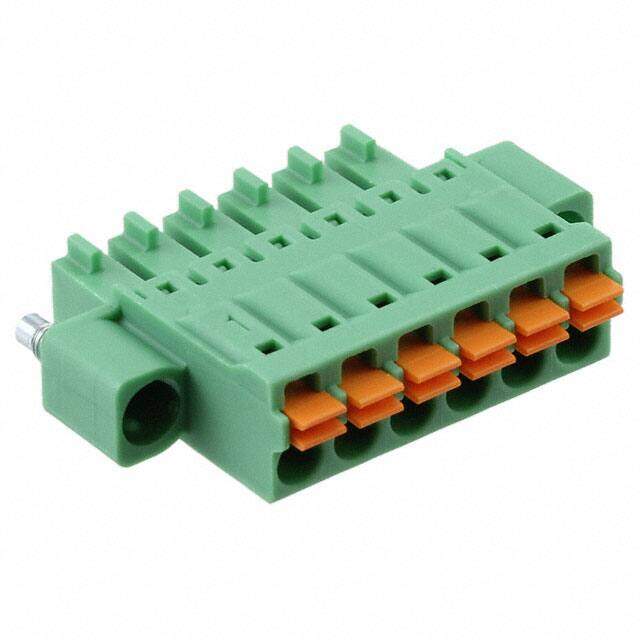

Description Pluggable Terminal Blocks 6 Pos 3.81mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $4.39
Unit Price: USD $4.3912
≥1 USD $4.3912
≥10 USD $4.27152
≥100 USD $3.99168
≥500 USD $3.672328
≥1000 USD $3.6036
Inventory: 587
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 6
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.307 7.80mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Gender Female
Color Green
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON FMC
Published 2011
Packaging Bulk

Physical

Weight 4.299999g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
