1748354
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

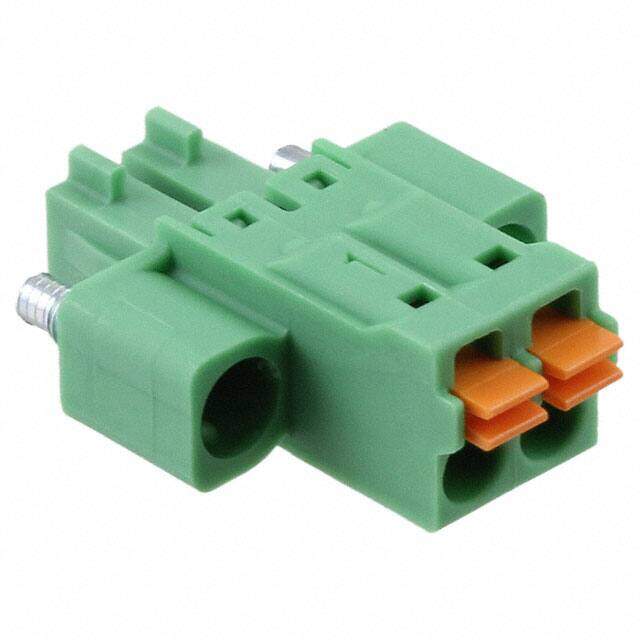

Pluggable Terminal Blocks 2 Pos 3.81mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $2.67
Unit Price: USD $2.6664
≥1 USD $2.6664
≥10 USD $2.59336
≥100 USD $2.42352
≥500 USD $2.229656
≥1000 USD $2.187891
Inventory: 1204
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 3.81mm
Technical
Number of Positions Per Level 2
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 150V
Approval Agency CB, VDE, cULus
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.307 7.80mm
Orientation Straight
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Female
Color Green
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON FMC
Published 2011
Packaging Bulk
Physical
Weight 2.299997g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Supply Chain
Factory Lead Time 4 Weeks
