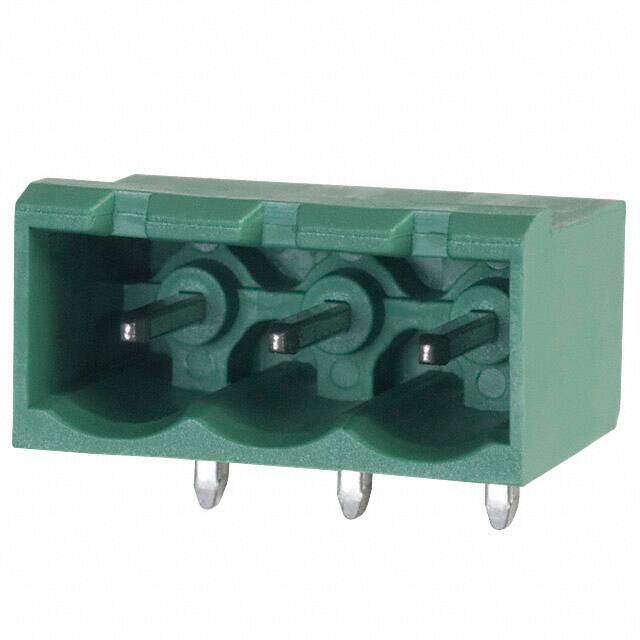

1748183 image
Favorite
1748183 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.2936
≥1 USD $1.2936
≥10 USD $1.254
≥100 USD $1.17216
≥500 USD $1.078352
≥1000 USD $1.058182
Inventory: 223
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 1.759995g

Technical

Packaging Bulk
Published 2011
Series COMBICON MSTBA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE
Pitch 0.200 5.08mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Gold
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Fastening Method CONNECTOR

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
