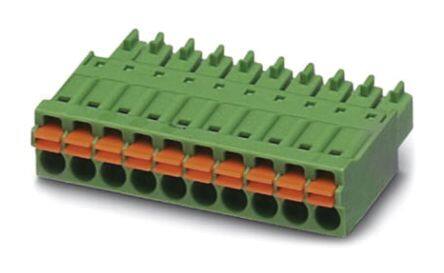

1748121
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 17 Pos 3.81mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $16.14
Unit Price: USD $16.137865
≥1 USD $16.137865
≥10 USD $15.224404
≥100 USD $14.362637
≥500 USD $13.549656
≥1000 USD $12.782698
Inventory: 4940
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 65.21mm
Technical
Number of Positions Per Level 17
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.307 7.80mm
Depth 7.8mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Female
Color Green
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON FMC
Published 2011
Packaging Bulk
Physical
Weight 9.899994g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
