1748053
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

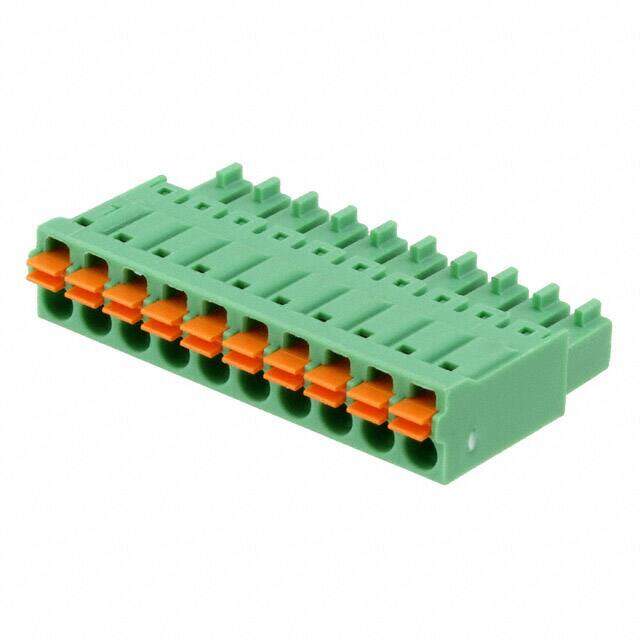

Conn Terminal Block SKT 10 POS 3.81mm ST Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $8.79
Unit Price: USD $8.7912
≥1 USD $8.7912
≥10 USD $8.55096
≥100 USD $7.99128
≥500 USD $7.35196
≥1000 USD $7.214381
Inventory: 99
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 6.157998g
Technical
Packaging Bulk
Published 2011
Series COMBICON FMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Depth 7.8mm
Insulation Height 0.307 7.80mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screwless - Push-In Spring
Number of Contacts 10
Voltage 150V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 10
Safety Approval CUL; GOST; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Dimensions
Width 38.54mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
