1748011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

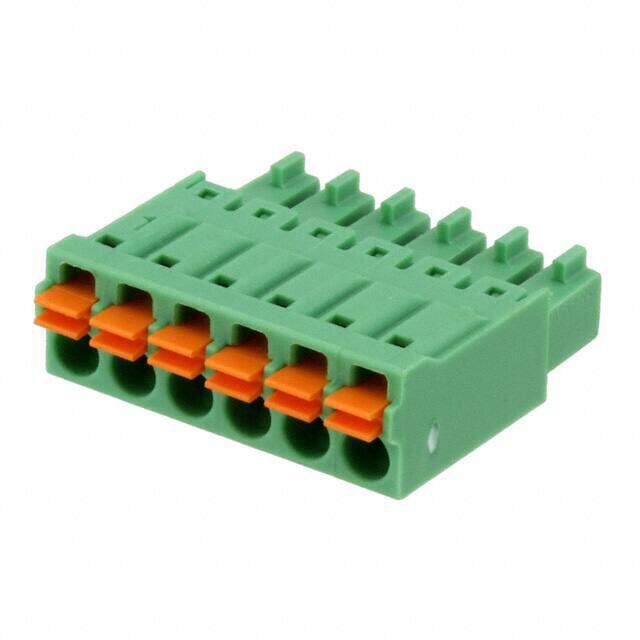

Pluggable Terminal Blocks 6 Pos 3.81mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $5.31
Unit Price: USD $5.3064
≥1 USD $5.3064
≥10 USD $5.1612
≥100 USD $4.82328
≥500 USD $4.4374
≥1000 USD $4.354346
Inventory: 554
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 3.599993g
Technical
Packaging Bulk
Published 2011
Series COMBICON FMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.150 3.81mm
Depth 7.8mm
Insulation Height 0.307 7.80mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 6
Safety Approval CUL; GOST; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 6
Fastening Method SPRING LOADED
Dimensions
Width 23.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
