1747993
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

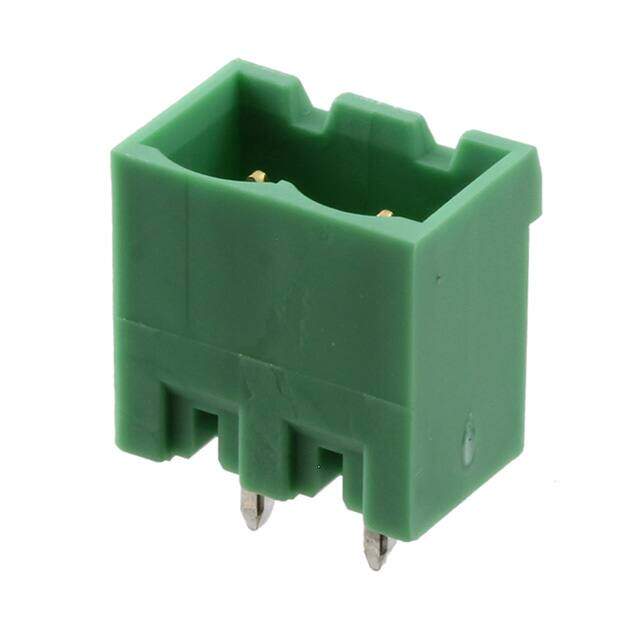

1747993 Phoenix Contact MSTBVA 2, 5/ 2-G-5, 08 AU
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.77968
≥100 USD $0.72864
≥500 USD $0.670384
≥1000 USD $0.657818
Inventory: 650
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Gold
Mounting Type Through Hole
Weight 1.351989g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBVA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Number of Ways 2
Safety Approval CB; CSA; CUL; UL; VDE
Header Orientation Vertical
Number of Positions Per Level 2
Dimensions
Height 12.16mm
Length 8.6mm
Width 15.9mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
