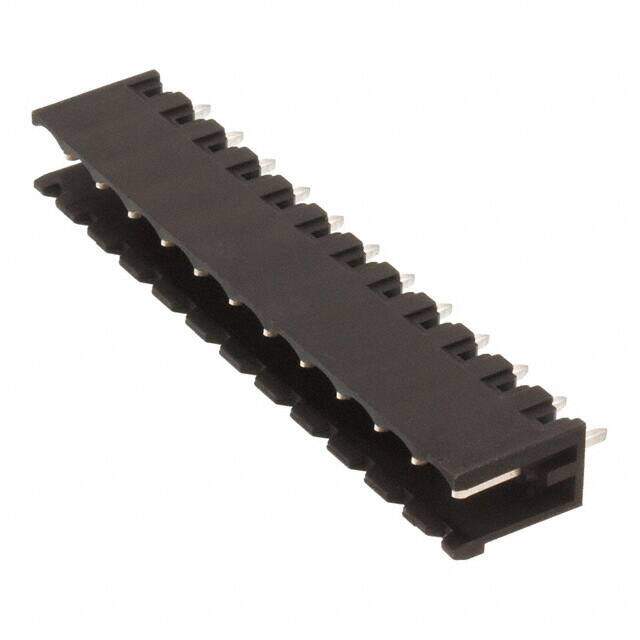

1746981 image
Favorite
1746981 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 12 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 60.96mm
Length 8.6mm
Height 15.9mm

Technical

Header Orientation Vertical
Voltage - IEC 400V
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Color Black
Number of Positions 12
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MSTBV
Published 2011
Packaging Bulk

Physical

Weight 5.089987g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
