1746842
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

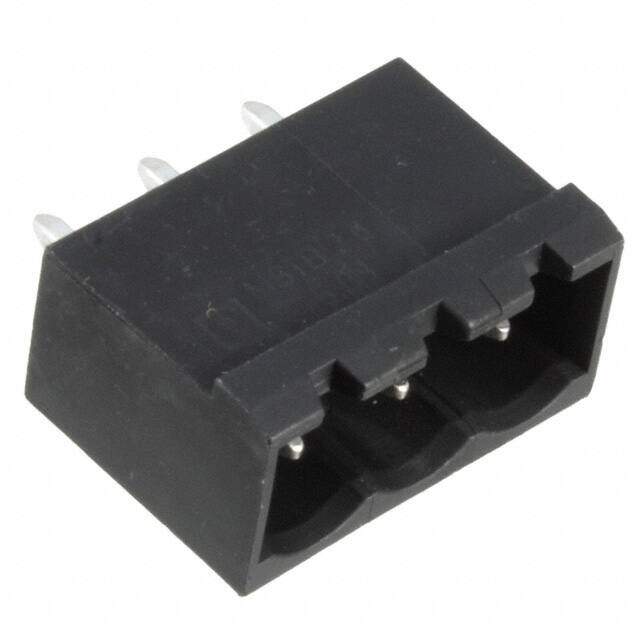

TERM BLOCK HDR 3POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.74536
≥100 USD $0.69696
≥500 USD $0.641168
≥1000 USD $0.6292
Inventory: 195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 1.726004g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, UL94V-0
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Header Orientation Vertical
Dimensions
Height 15.9mm
Length 8.6mm
Width 17.24mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
