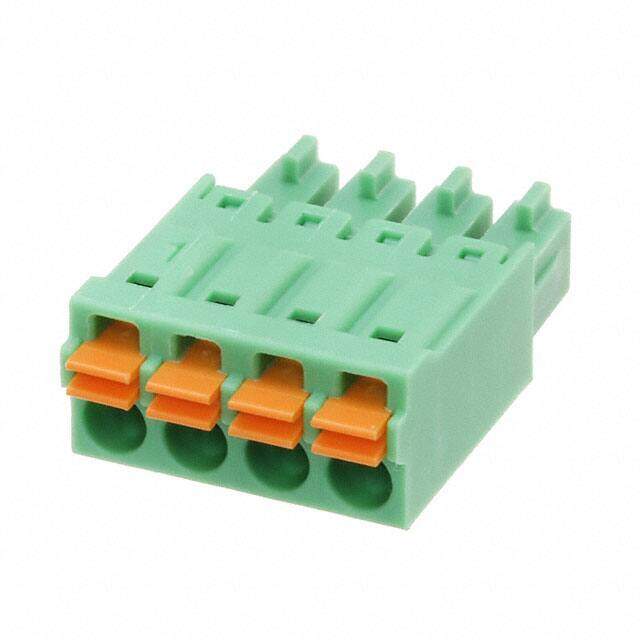

1745917
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8456
≥1 USD $3.8456
≥10 USD $3.68896
≥100 USD $3.528448
≥500 USD $3.432176
≥1000 USD $3.2076
≥3000 USD $2.95101
Inventory: 1167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 2.550011g
Technical
Packaging Bulk
Published 2011
Series COMBICON FMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 160V
Pitch 0.150 3.81mm
Depth 7.8mm
Insulation Height 0.307 7.80mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 4
Dimensions
Height 15.73mm
Length 7.8mm
Width 22.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
