1745894
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

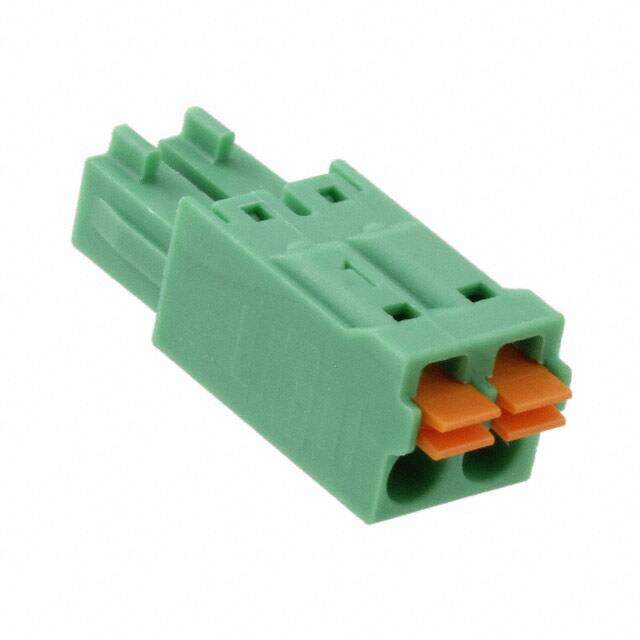

Conn Terminal Block SKT 2 POS 3.81mm ST Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.7688
≥1 USD $1.7688
≥10 USD $1.7204
≥100 USD $1.60776
≥500 USD $1.479104
≥1000 USD $1.451437
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 22.9mm
Length 7.8mm
Height 8.11mm
Technical
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-24 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.307 7.80mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Green
Number of Positions 2
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON FMC
Published 2011
Packaging Bulk
Physical
Weight 1.500002g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
