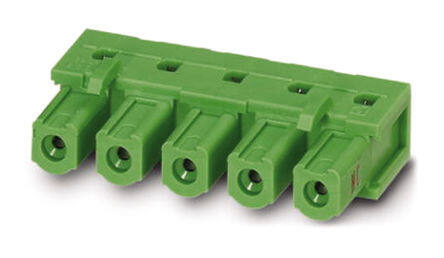

1745823
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $6.56
Unit Price: USD $6.559597
≥1 USD $6.559597
≥10 USD $6.188299
≥100 USD $5.838024
≥500 USD $5.507569
≥1000 USD $5.195815
Inventory: 1188
Minimum: 1
-
+
Technical Details
Technical
Current - IEC 16A
Number of Positions Per Level 6
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 6
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.402 10.20mm
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V0
Voltage - Rated 630V
Number of Rows 1
Color Green
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON GIC
Published 2012
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Weight 62.199988g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
