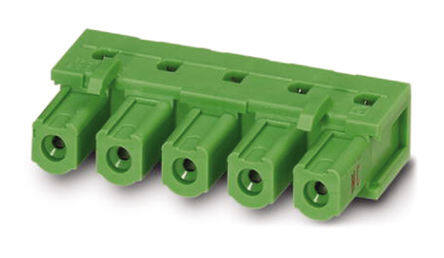

1745807
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.7752
≥1 USD $3.7752
≥10 USD $3.6696
≥100 USD $3.42936
≥500 USD $3.155064
≥1000 USD $3.095946
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 30.48mm
Length 13.7mm
Height 19mm
Technical
Number of Positions Per Level 4
Current - IEC 16A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 300V
Current 10A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.402 10.20mm
Pitch 0.300 7.62mm
Voltage - Rated 630V
Number of Rows 1
Color Green
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON GIC
Published 2011
Packaging Bulk
Physical
Weight 6.281007g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
