1745784
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

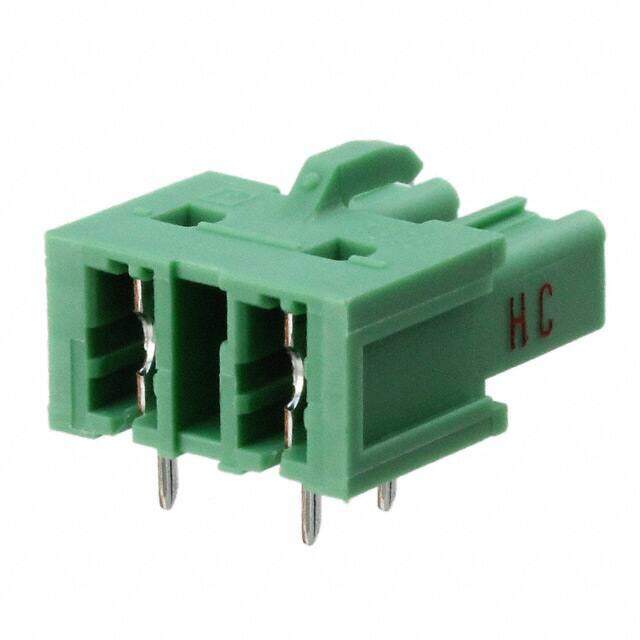

Terminal block; PCB; Header; Female Sockets; 2 position; 16A; 1000V; Solder
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.5928
≥1 USD $1.5928
Inventory: 131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 4.134013g
Technical
Packaging Bulk
Published 2012
Series COMBICON GIC
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 19mm
Insulation Height 0.402 10.20mm
Reach Compliance Code unknown
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 16A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 2
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 2
Dimensions
Length 15.24mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
