1740343
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

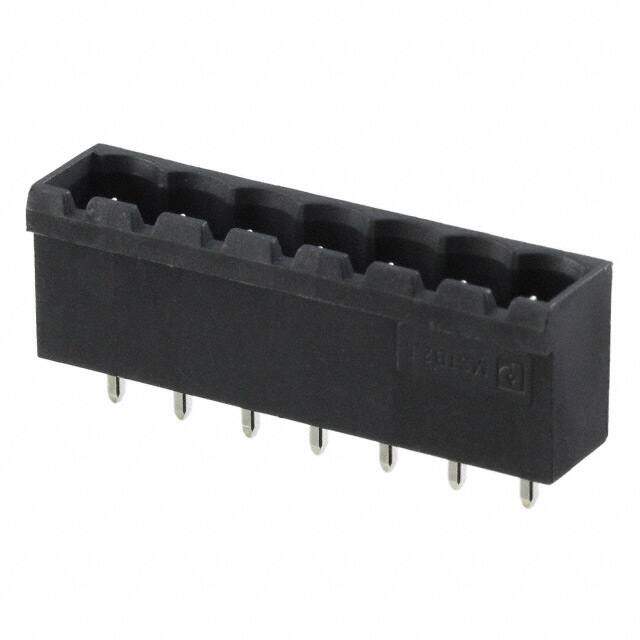

Pluggable Terminal Blocks 7 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.848
≥1 USD $1.848
≥10 USD $1.79696
≥100 USD $1.67904
≥500 USD $1.544752
≥1000 USD $1.515782
Inventory: 351
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Header Orientation Vertical
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Number of Ways 7
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2011
Packaging Bulk
Physical
Weight 1.050066kg
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
