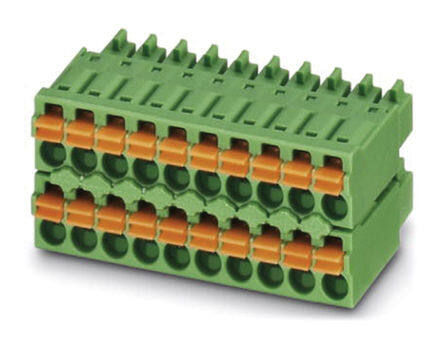

1738885 image
Favorite
1738885 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 10 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $18.65
Unit Price: USD $18.6472
≥1 USD $18.6472
≥10 USD $18.13504
≥100 USD $16.9488
≥500 USD $15.592984
≥1000 USD $15.301018
Inventory: 133
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 11.760006g

Technical

Packaging Bulk
Published 2010
Series COMBICON FMCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 20
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 160V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Depth 16mm
Insulation Height 0.630 16.00mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 10
Fastening Method SPRING LOADED

Dimensions

Height 22.9mm
Length 22mm
Width 35.7mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
