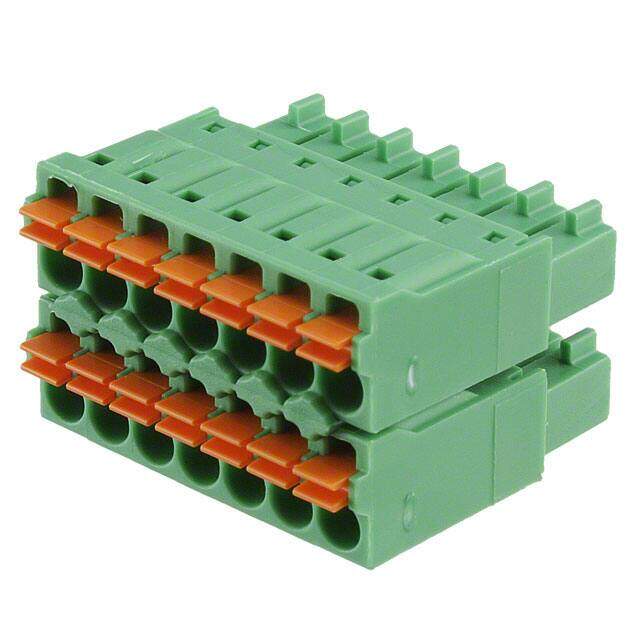

1738856
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $13.7
Unit Price: USD $13.7016
≥1 USD $13.7016
≥10 USD $13.33024
≥100 USD $12.45816
≥500 USD $11.46156
≥1000 USD $11.246963
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 8.398008g
Technical
Packaging Bulk
Published 2011
Series COMBICON FMCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 14
Color Green
Number of Rows 2
Voltage - Rated 160V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.630 16.00mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screwless - Push-In Spring
Approval Agency CB, VDE, cULus
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 7
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 7
Fastening Method SPRING LOADED
Dimensions
Height 22.9mm
Length 20mm
Width 25.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
