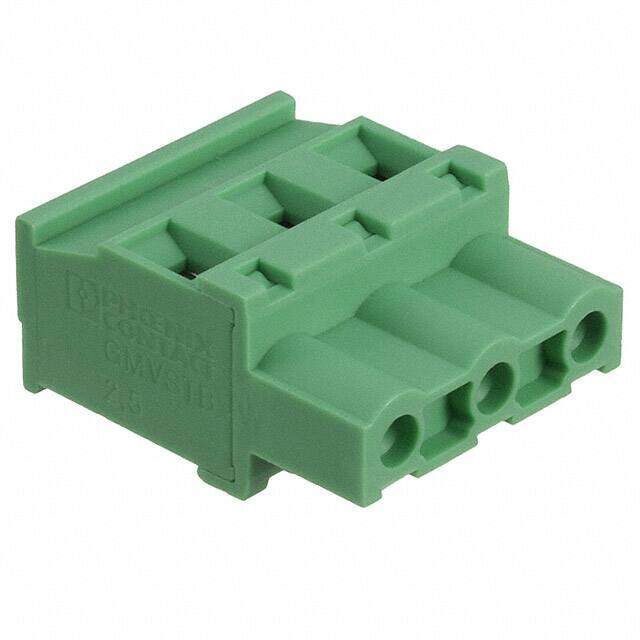

1737822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 3 POS 7.5mm Screw ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $4.46
Unit Price: USD $4.4616
≥1 USD $4.4616
≥10 USD $4.33928
≥100 USD $4.05504
≥500 USD $3.730672
≥1000 USD $3.6608
Inventory: 307
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 26mm
Length 20.5mm
Height 17.7mm
Technical
Wire Cross Section 2.5 mm2
Stripping Length 7mm
Screw Size M3
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 270°
Safety Approval UL
Number of Ways 3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 500V
Voltage 300V
Number of Contacts 3
Approval Agency CB, CSA, UL, VDE
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 1.024 26.01mm
Depth 26mm
Orientation Straight
Pitch 0.295 7.50mm
Voltage - Rated DC 500V
Additional Feature PA, 94V-0
Voltage - Rated 500V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON GMVSTBW
Published 2008
Packaging Bulk
Physical
Weight 1.59982kg
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
