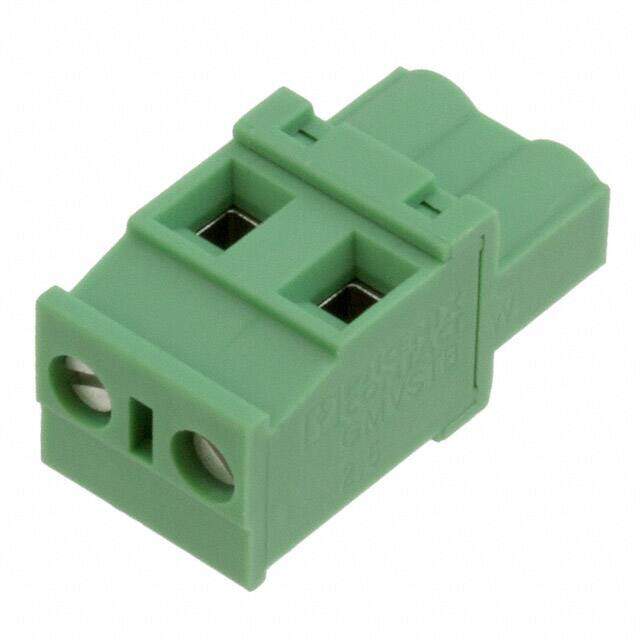

1737819
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2P 7.5mm 270DEG
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.92945
≥1 USD $1.92945
≥10 USD $1.82023
≥100 USD $1.7172
≥500 USD $1.62
≥1000 USD $1.5283
Inventory: 1417
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 1.59982kg
Technical
Packaging Bulk
Published 2012
Series COMBICON GMVSTBW
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
HTS Code 8536.69.40.40
Voltage - Rated DC 500V
Pitch 0.295 7.50mm
Orientation Straight
Depth 12.6mm
Insulation Height 1.024 26.01mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Max Supply Voltage 500V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Number of Poles 2
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-2.5mm2
Screw Size M3
Stripping Length 7mm
Dimensions
Height 13mm
Length 13mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
