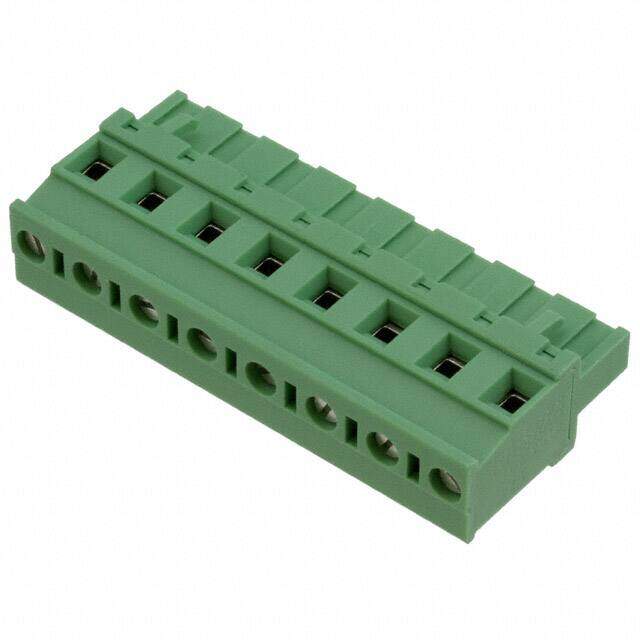

1737767
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 8 POS 7.5mm Screw ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $34.26
Unit Price: USD $34.258813
≥1 USD $34.258813
≥200 USD $13.669915
≥500 USD $13.213026
≥1000 USD $12.987207
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.6mm
Length 88mm
Height 26mm
Technical
Wire Cross Section 2.5 mm2
Stripping Length 7mm
Screw Size M3
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 8
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Number of Poles 8
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 500V
Voltage 300V
Approval Agency CB, CSA, UL, VDE
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.295 7.50mm
Voltage - Rated DC 500V
Additional Feature PA, 94V-0
Voltage - Rated 500V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Wire Side)
Series COMBICON GMVSTBR
Published 2011
Packaging Bulk
Physical
Weight 800.136941g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
