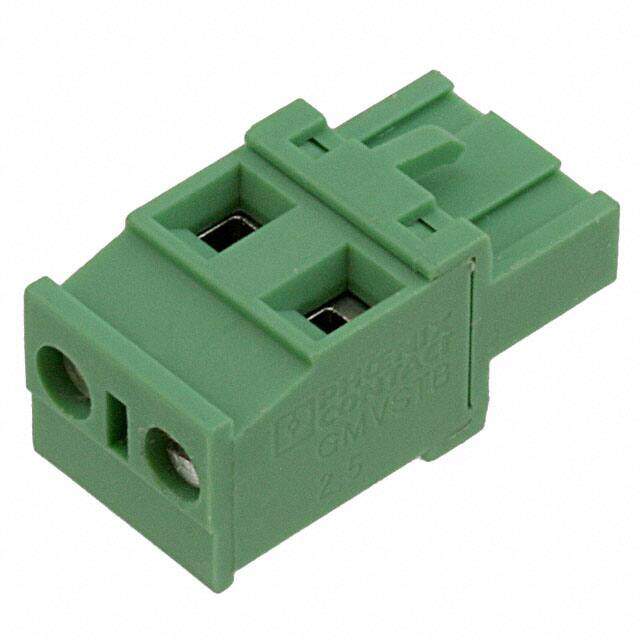

1737709 image
Favorite
1737709 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 7.5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.88112
≥100 USD $2.6928
≥500 USD $2.477376
≥1000 USD $2.430982
Inventory: 104
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.6mm
Length 13mm
Height 13mm

Technical

Stripping Length 7mm
Screw Size M3
Number of Positions Per Level 2
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Positions Per Level 2
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 2
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Voltage 300V
Housing Color Green
Number of Contacts 2
Approval Agency CB, CSA, UL, VDE
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 1.024 26.01mm
Depth 26mm
Orientation Straight
Pitch 0.295 7.50mm
Voltage - Rated DC 500V
Voltage - Rated 500V
Gender Female
Number of Rows 1
Color Green
Number of Positions 2
Type Plug, Female Sockets
Connector Type Screw, Socket
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Wire Side)
Series COMBICON GMVSTBR
Published 2011
Packaging Bulk

Physical

Weight 1.59982kg
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin
Contact Material Tin

Supply Chain

Factory Lead Time 4 Weeks
