1737051
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

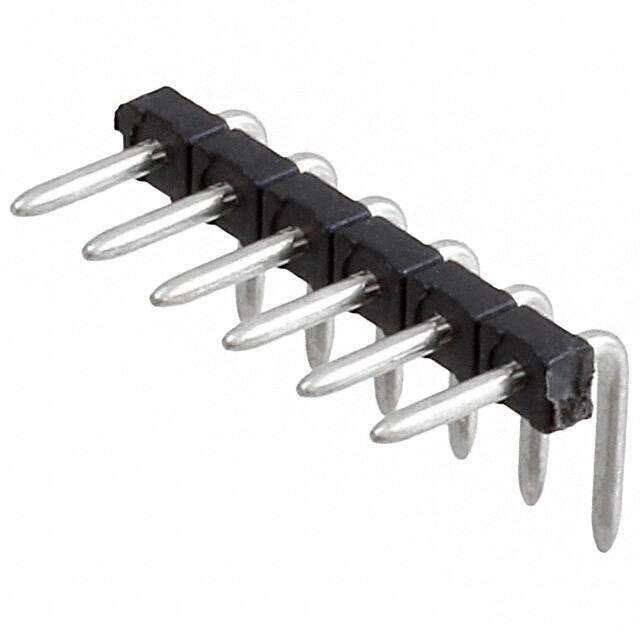

Headers & Wire Housings 6 Pos 3.5mm pitch Thru Hole Pin Strip
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.6864
≥100 USD $0.64152
≥500 USD $0.590216
≥1000 USD $0.579146
Inventory: 198
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 6
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.260 6.60mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.110 2.79mm
Orientation Right Angle
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 6
Type Header, Male Pins, Unshrouded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PST
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
