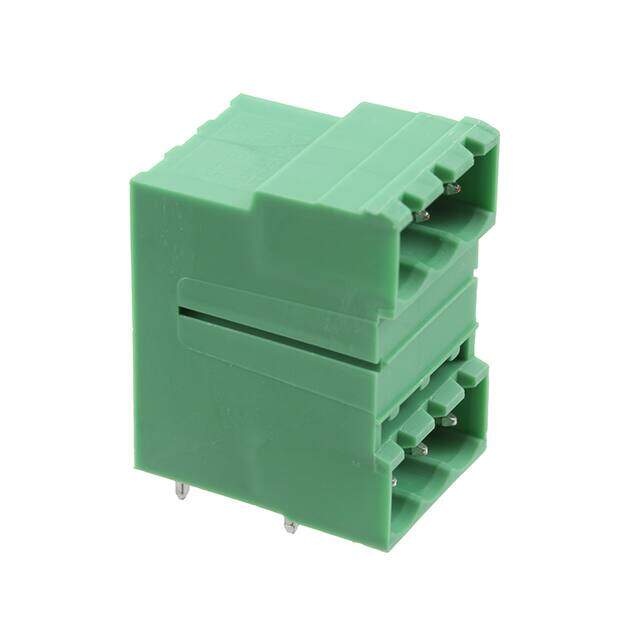

1736687
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 6 position; 10A; 630V; Solder
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.344
≥1 USD $3.344
≥10 USD $3.25424
≥100 USD $3.04128
≥500 USD $2.79796
≥1000 USD $2.7456
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 32mm
Length 22mm
Height 22mm
Technical
Header Orientation 90°, Right Angle
Safety Approval CSA; UL
Number of Ways 3
Positions Per Level 3
Voltage - IEC 630V
Number of Decks 2
Current 15A
Number of Levels 2
Max Current Rating 10A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 1.122 28.50mm
Depth 22mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Number of Rows 2
Color Green
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MDSTB
Published 2003
Packaging Bulk
Physical
Weight 907.18474g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
